DESCRIPTION AND APPLICATION

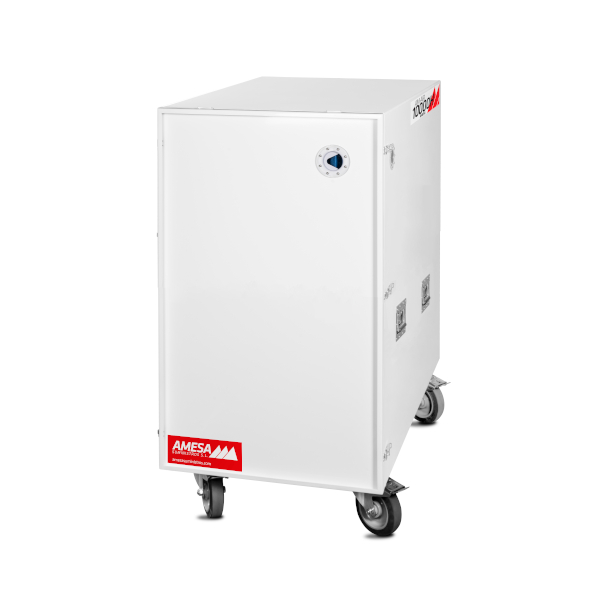

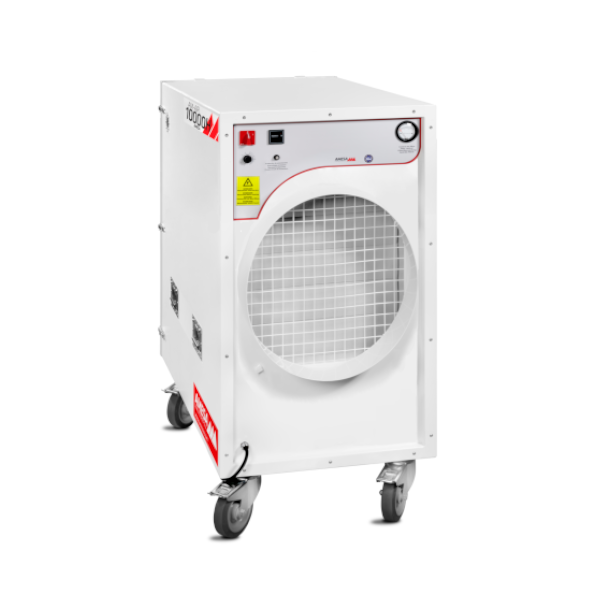

The AM-AIR/10000H-2 is a Negative Pressure Unit (NPU) with a nominal airflow capacity of 10000 m3/h.
A machine designed to work in large industrial confinements.
It incorporates a speed regulator to adjust the air flow and a pressure gauge to control the status of the filters.
TECHNICAL DATA
Nominal air flow: 10000 m3/h
Dimensions: 1180 x 675 x 1210 mm
Power supply: 230 V, 50 Hz / 15 A
Power: 3 kW
Weight: 155 kg
Exhaust air hose: Ø 550 mm
Filters:
– Prefilter 910 x 610 x 94 mm (DPF5062)
– HEPA filter 910 x 610 x 292 mm (DPF8088)
Overpressure shutter PER-550W: 31x548x548 mm
NORMATIVE
EN-60335-2-69, EN-1822, EN 60204-1:2007/A1:2009.
